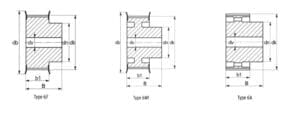

| Anzahl Zähne | Typ | Material | Artikelbezeichnung | dk | db | dn | dv | b1 | B | kg |
|---|---|---|---|---|---|---|---|---|---|---|
| 22 | 6F | St | 22-8M-20 | 54,65 | 60,0 | 43 | 12 | 28 | 38 | 0,540 |
| 24 | 6F | St | 24-8M-20 | 59,74 | 66,0 | 45 | 12 | 28 | 38 | 0,650 |
| 26 | 6F | St | 26-8M-20 | 64,84 | 71,0 | 50 | 12 | 28 | 38 | 0,800 |
| 28 | 6F | St | 28-8M-20 | 70,08 | 75,0 | 50 | 15 | 28 | 38 | 0,870 |
| 30 | 6F | St | 30-8M-20 | 75,13 | 83,0 | 55 | 15 | 28 | 38 | 1,020 |
| 32 | 6F | St | 32-8M-20 | 80,16 | 87,0 | 60 | 15 | 28 | 38 | 1,200 |
| 34 | 6F | St | 34-8M-20 | 85,22 | 91,0 | 70 | 15 | 28 | 38 | 1,400 |
| 36 | 6F | St | 36-8M-20 | 90,30 | 98,5 | 70 | 15 | 28 | 38 | 1,550 |
| 38 | 6F | St | 38-8M-20 | 95,39 | 103,0 | 75 | 15 | 28 | 38 | 1,650 |
| 40 | 6F | GG | 40-8M-20 | 100,49 | 106,0 | 75 | 15 | 28 | 38 | 1,740 |
| 44 | 6F | GG | 44-8M-20 | 110,67 | 119,0 | 75 | 15 | 28 | 38 | 2,100 |
| 48 | 6F | GG | 48-8M-20 | 120,86 | 127,0 | 75 | 15 | 28 | – | 2,440 |
| 56 | 6WF | GG | 56-8M-20 | 141,23 | 148,0 | 80 | 15 | 28 | 38 | 2,600 |
| 64 | 6WF | GG | 64-8M-20 | 161,60 | 168,0 | 80 | 15 | 28 | 38 | 2,900 |
| 72 | 6WF | GG | 72-8M-20 | 181,97 | 192,0 | 80 | 15 | 28 | 38 | 3,100 |
| 80 | 6A | GG | 80-8M-20 | 202,35 | – | 90 | 15 | 28 | 38 | 3,800 |
| 90 | 6A | GG | 90-8M-20 | 227,81 | – | 90 | 15 | 28 | 38 | 4,200 |
| 112 | 6A | GG | 112-8M-20 | 283,83 | – | 90 | 18 | 28 | 38 | 5,210 |
| 144 | 6A | GG | 144-8M-20 | 365,32 | – | 90 | 20 | 28 | 38 | 7,510 |
| 168 | 6A | GG | 168-8M-20 | 426,44 | – | 100 | 20 | 28 | 38 | 10,010 |
| 192 | 6A | GG | 192-8M-20 | 487,55 | – | 100 | 20 | 28 | 38 | 13,000 |
Für weitere Varianten: Produkt bitte Anfragen und Wünsche in das Notizfeld schreiben.
